تفاصيل المنتج:
شروط الدفع والشحن:
|
| بعد دعم الضمان: | دعم الفيديو عبر الإنترنت | عملية الآلات: | هيدروليكي |
|---|---|---|---|
| الأعلى. نقل القدرة: | 9 م 3 / ساعة | هوية الأنبوب: | 51/57 ملم |
| طريقة الكبح: | هيدروليكي | وزن: | 110 كجم |
| القطر الداخلي للخرطوم: | 50 ملم | Max. الأعلى. conveying distance نقل المسافة: | 200m |
| ضغط التشغيل: | 0.4-0.6mpa | معرف أنبوب التسليم: | 51/57 ملم |
| إبراز: | hydraulic wet shotcrete machine,concrete pumps for slope support,aggregate conveyor shotcrete machine,concrete pumps for slope support,aggregate conveyor shotcrete machine |
||

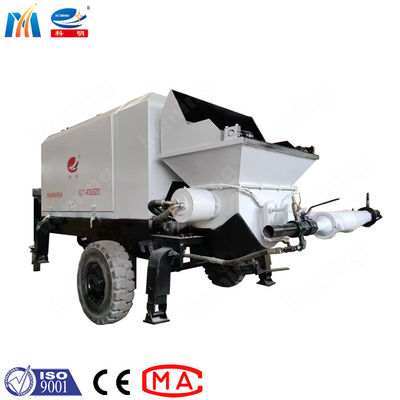

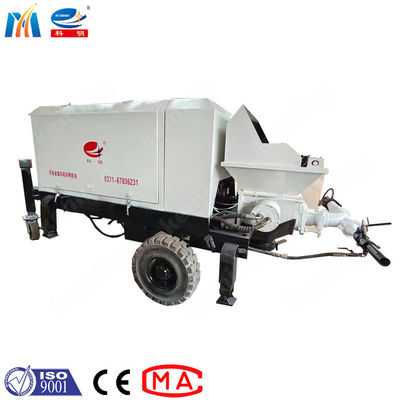

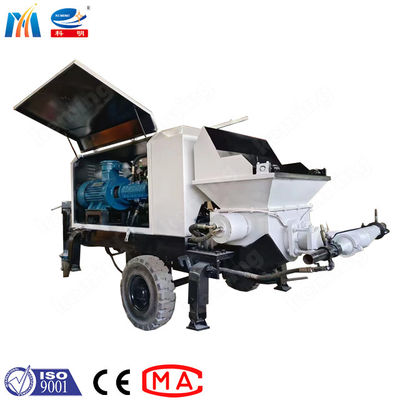

The hydraulic wet spraying machine is a pump-type concrete wet spraying machine. It adopts hydraulic pumping, with high system reliability and stable delivery volume. The hydraulic wet spraying machine can be used for spraying, filling, grouting, pumping and other construction. The injection amount is continuously adjusted: the main oil pump adopts a variable plunger pump, and the injection speed can be freely adjusted. The amount of accelerator added is continuously adjustable: it can be adjusted steplessly according to the amount of spraying.
The hydraulic wet spraying machine adopts a four-wheel solid tire design, which is easy to move and has multiple uses. It can be used as a wet spraying machine, as well as a concrete delivery pump or mortar pump. It is widely used in concrete spraying construction operations in mines, tunnels, culverts, subways, hydropower projects, construction foundation pits, underground projects and slope protection.
|
Model
|
|
KBS-8A hydraulic shotcrete machine
|
|
Max. theoretical capacity
|
m³/h
|
12
|
|
Working capacity
|
m³/h
|
3-8
|
|
Max. system pressure
|
Mpa
|
16
|
|
Working air pressure
|
Mpa
|
0.4-0.6
|
|
Max. aggregate diameter
|
mm
|
15
|
|
Max. theoretical vertical delivery dist
|
mm
|
150
|
|
Max. theoretical horizontal delivery dist.
|
mm
|
400
|
|
Total weight
|
Kg
|
2600
|
|
Dimensions
|
mm
|
3800*1400*1730
|
|
Main motor power
|
KW
|
22
|
|
Voltage
|
V
|
380
|
|
Hopper volume
|
m³
|
0.4
|
|
Concrete slump
|
cm
|
12-18
|
|
Dust concentration around
|
mg/m³
|
<6
|
|
Feeding height
|
mm
|
1150
|
|
Oil tank capacity
|
L
|
180
|
|
Rebound rate
|
%
|
≤10
|
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
